The Schneider Electric Xantrex XW-MPPT80-600 is a solar (PV) battery charger, which uses power supplied by a PV array to charge either a 24V or 48V battery bank. It has many innovative features making it outstanding compared to other solar battery chargers available today.
The XW MPPT 80 600 is an innovative solar charge controller that offers an industry-first set of features: high PV input voltage (up to 600 Vdc), Maximum Power Point Tracking (MPPT), and 80 A charge current. 600 Vdc PV input voltage delivers lower installation costs through fewer PV strings, longer home runs, smaller wiring and conduit, and virtual elimination of PV combiner boxes and circuit breakers. MPPT technology helps harvest the most energy available from the PV array, regardless of environmental conditions. 80 A battery charge current allows for connection of arrays rated at up to 4800 W (48 V battery bank).
Possible Applications:
- Solar charge regulator for Off-Grid stand-alone systems. Combine with a deep cycle battery bank and Latronics LS type inverter of your choice, and you have the main components of your RAPS (Remote Area Power System) already taken care of.
- Use your existing PV array from an On-Grid system to charge a battery bank in case of a power failure. It is hence easy to tap into your existing solar power system - and provide power for your home (with some batteries & inverter) during power failures.
Specifications:
- Maximum input voltage: 600VDC
- MPPT input voltage range: 195-510VDC
- PV array start voltage: 230VDC
- Maximum PV input current: 35A
- Input power (24V / 48V): 2,560W / 4,800W
- Output voltages (battery bank voltages): 24V or 48V
- Maximum output current: 80A
- Battery type settings: FLA, AGM, Gel, Custom
- Number of charge stages: 2 or 3 (user selectable)
- Battery temperature compensation
- High Efficiency: 96% nom @ 48 V; 94% nom @ 24 V
- Protections: Input over-voltage and over-current, output over-current and back-feed Protection, over-temperature protection
- Weight (product/shipping):13.5 / 17.4 kg

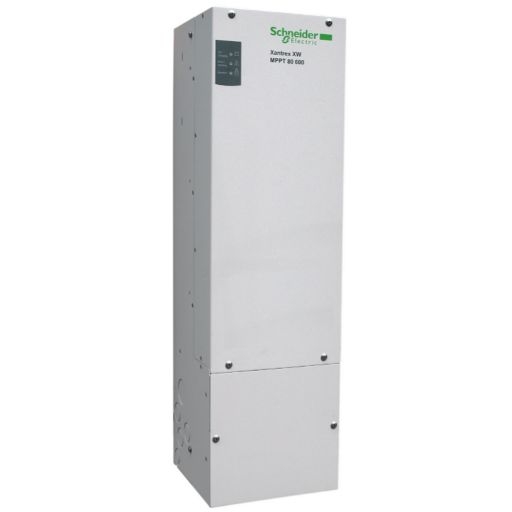

Please note that photo is for illustrative purposes only, and that specifications can change without notice and without incurring liability.
